V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two-stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the product’s high cooling, generating compressed air with lower temperatures, with increased efficiency. These two-stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready-to-use compressor. The ASME certified safety valve and air receiver, and high-efficiency motors make Heavy Duty V-Series compressors the best choice for your company.

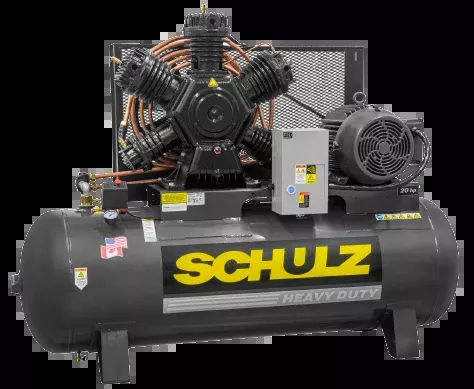

Powder coated 120 gallons horizontal air tank (ASME CERTIFIED)
100% Cast iron 5 cylinders pump splash lubricated
208 230 460 Volts three phase WEG motor
80 cfm displacement, 175 psi
Magnetic starter mounted
High efficiency inter-cooler
1083lb
79”x28”x58” LxWxH
Additional Model s: 20120HWV80X-3
*Always consult your electrician for proper installation and proper wiring
Warranty:
2 years on the cast iron pump (with proper maintenance)
1 year on all the other components
(MPN) Manufacturer Part Number – 932.9338-0
