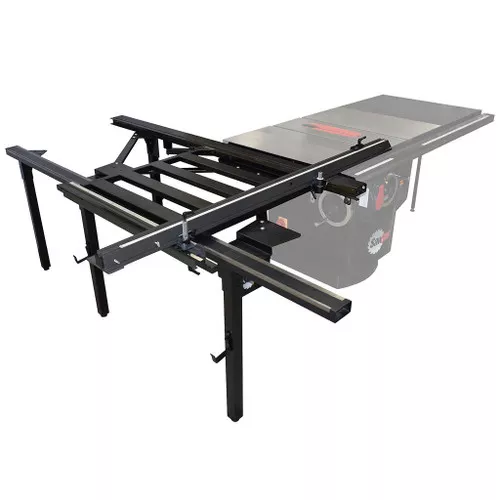

Engineered for the demands of the Industrial woodshop, the Large Format Sliding Table ensures easy, repeatable operation. Cut sheet goods and larger stock easily, with maximum control and sure measurement. A rigid steel frame and 14 sealed, steel bearings ensure a reliable, smooth glide, and maximum adjustability affords both traditional and Euro configurations for a max crosscut of 70″.
- Compatible with most ICS and PCS configurations.
- Mfr.’s 1-year warranty
Net weight: 173 lbs.
Sliding Table Dimensions: 30″ x 30-1/2″
Maximum Table Travel: 71-1/2″
Maximum Crosscutting Length: 118″ (On PCS w/out Extension Wing)
Maximum Rip Capacity (Front Mounting): 49″
Maximum Rip Capacity (Rear Mounting): 70″
Weight Capacity Fully Extended: 350 lbs.
Assembly Time: One Day
Aluminum Fence: Included
Includes
Sliding Table
Inner Guide Tube
Outer Guide Tube
Crosscut Fence
Angle Guide Rail
Mounting Bracket
4 Support Legs
2 Leg Brackets
2 Stepped Leg Bracket
Positioning Plate
Front Bracket
Support Tube
3 Lateral Brackets
2 Guide Bearing Assemblies
Fence Pivot Assembly
Flip Stop
Fence Lock Assembly
Fence Extension
Logo Plate
Owner’s Manual
