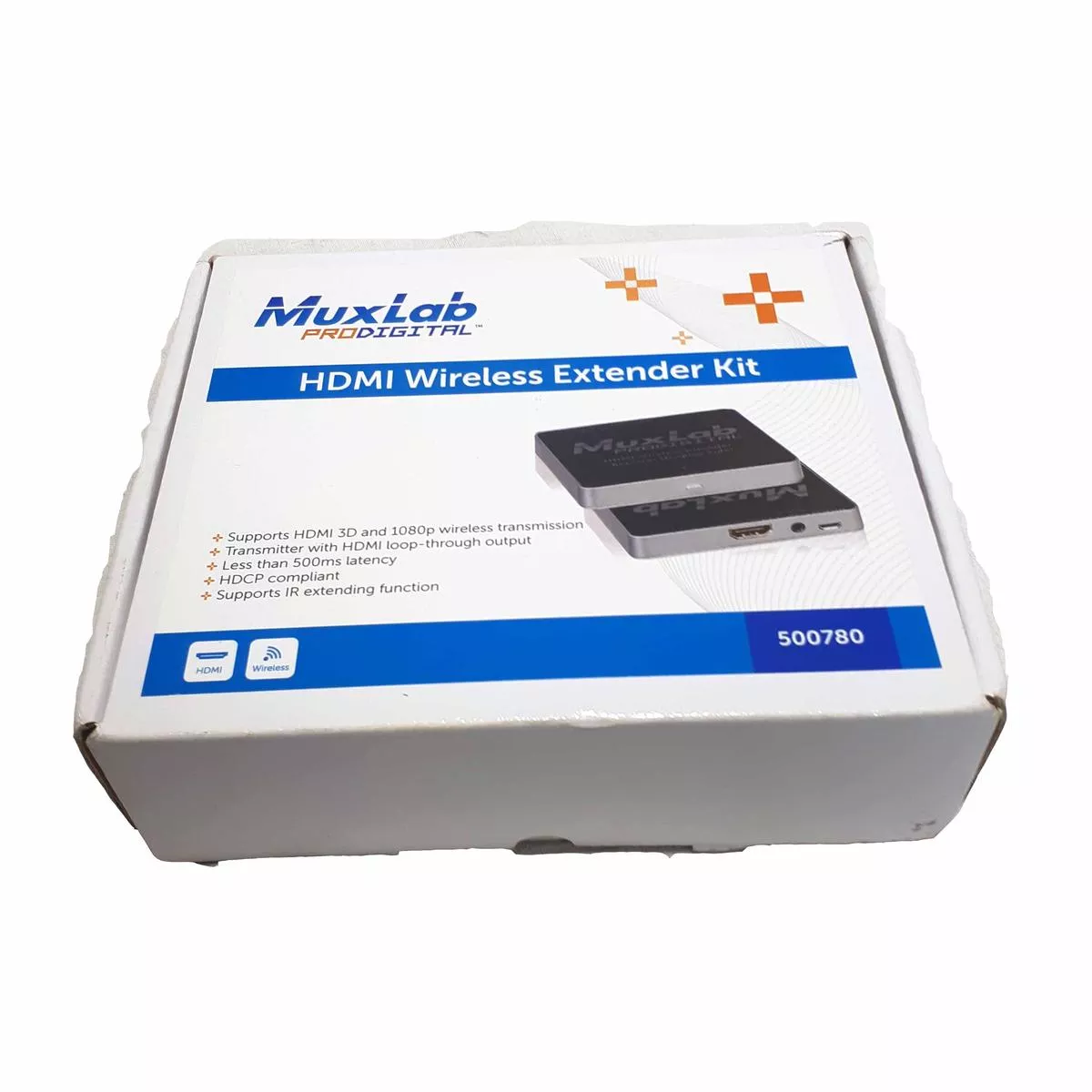

HDMI Wireless Extender KitfromMuxLabcan extend HDMI signals up to 100′ away in a point-to-point configuration. This kit supports resolutions up to 1080p and also supports 3D signals, making it suitable for both commercial and residential installations. The kit features on-device LED diagnostic indicators and pairing buttons for quick and easy setup. In addition to a transmitter and receiver, the kit also includes an IR emitter and sensor for remote control applications.
- HDMI 1.3a (supports the 3D feature of HDMI 1.4)
- Supports up to 1080p & 3D resolutions
- H.264 video compression with <500ms latency
- Up to 100′ (30m) line of sight between transmitter and receiver
- HDMI loop-out on transmitter
- Supports IR transmissions
- LED diagnostic indicators
- Pairing button for quick and easy setup
In the Box
- MuxLab HDMI Wireless Extender Kit
- Transmitter
- Receiver
- IR Emitter
- IR Sensor
- 2 x Power Supplies
| Bandwidth | 165 MHz |
| Transmission Range | 100′ (30 m) |
| Bandwidth | Up to 15 Mbps |
| Connectors | Transmitter: 2 x HDMI 1 x 2.5 mm jack for IR emitter 1 x Micro-USB power Receiver: 1 x HDMI 1 x 3.5 mm jack for IR sensor 1 x Micro-USB power |
| Latency | <500 ms |
| IR Frequency | Wideband 30 to 60 kHz |
| Power Supply | 110-240 VAC to 5 VDC, 1 A micro-USB power supply (per unit) |
| Power Consumption | Transmitter: 4.5 W (max) Receiver: 3.5 W (max) |
| Operating Temperature | 32 to 104F (0 to 40C) |
| Storage Temperature | -4 to 185F (-20 to 85C) |
| Humidity | Up to 95% non-condensing |
| Dimensions | 3.3 x 3.3 x 0.5″ (84 x 84 x 13 mm) |
| Weight | 1 lb (0.45 kg) |
Packaging Info
| Package Weight | 1 lb |
| Box Dimensions (LxWxH) | 7.6 x 6.4 x 2.3″ |
