Munro StartBox Thermal Protection 24 Volt Control Voltage MPSR24VXX
HUGE DISCOUNT ON MUNRO WHEN ADDED TO THE CART
NO SALES TAX EVER!

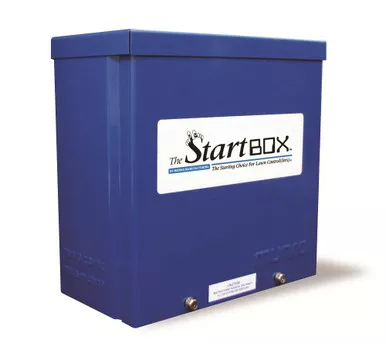

StartBoxTM – Thermal Protection
This StartBox variation protects the pump motor from damage due to over
amping while still performing all the basic functions of the standard pump
start relay.
• Provides the pump motor with thermal overload protection, even when the
motor itself does not
• Overload can be reset manually (default) or automatically upon cool down
• For use with single phase motors, but three phase option also available
• Reduced incoming amperage option available
CONSTRUCTION
• Quick-connect terminals
• UL listed relay
• UL-50 Type 3R listed enclosure – approved for outdoor use, available in
stainless steel or powder coated blue*
Line
Voltage
Control Voltage: 24V
FUSED – Circuit protection for secondary transformer
Quick connect leads with wire nuts
STEP-DOWN TRANSFORMER –
Provides reduced, safe out, voltage for remote start
IEC CONTACTOR – Rated by hp
Overload provides thermal protection from excessive amperage draw
Grounding provision
