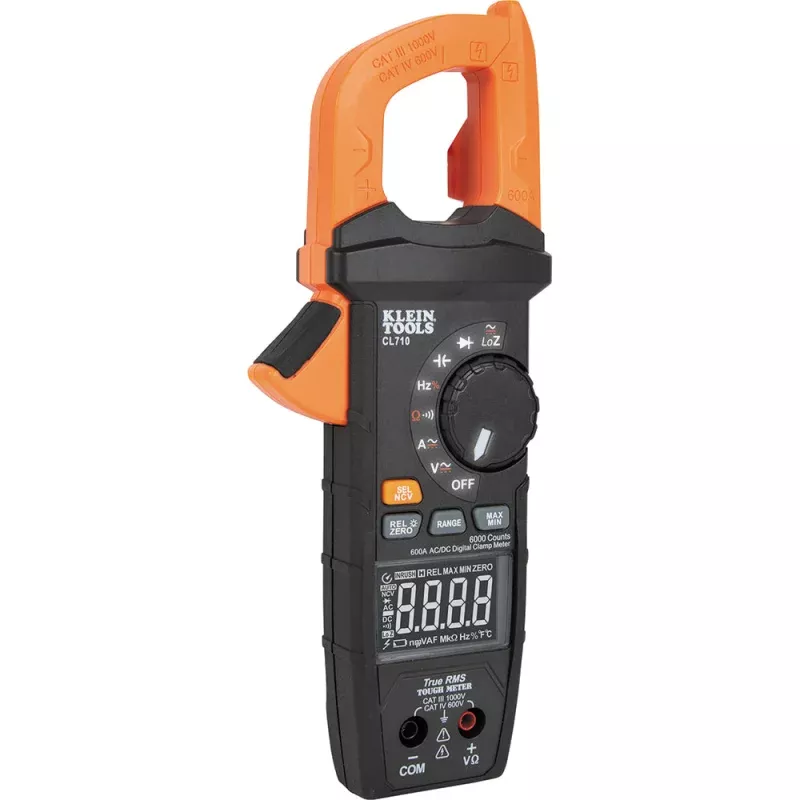

Klein Tools CL710 600A AC/DC Auto-Ranging Digital Pro Clamp Meter
-39%

Klein Tools CL710 600A AC/DC Auto-Ranging Digital Pro Clamp Meter

in hot sale
Sku: ABMETERS21516

$32.72 Save:$21.00(39%)

Category:
Description

Klein Tools CL710 600A AC/DC Auto-Ranging Digital Pro Clamp Meter

Klein Tools CL710 Clamp Meter delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, and capacitance, all with True RMS precision. It features diode testing and a Low Impedance (LoZ) mode to eliminate ghost voltages. The clamp features NCV detection with escalating audio-visual alerts the closer to the voltage source. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.

  • Clamp meter with True RMS provides accurate and reliable measurements across various applications
  • Measures AC/DC voltage, AC/DC current, resistance, diode test, continuity, capacitance, and frequency/duty cycle
  • Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
  • Illuminated dial ensures clear visibility and easy reading, even in low-light environments
  • Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
  • Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
  • Durable Clamp Meter is rated IP40 for ingress protection and withstands drops up to 6.6 feet (2 m)
  • Includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
  • Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb
  • Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation

PRODUCT SPECIFICATIONS:

.tg {border-collapse:collapse;border-spacing:0;}.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, ;font-size:14px; overflow:hidden;padding:10px 5px;word-break:normal;}.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, ;font-size:14px; font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}.tg .tg-0lax{text-align:left;vertical-align:top}

  • Type:Pro Clamp Meter
  • Application:Variety of Electrical Diagnostic and Troubleshooting Applications
  • Special Features: Transflective Reverse-Contract Display; Lighted Dial; Built-in Lead Holder
  • Material:ABS/Electronics
  • Batteries:3 x AAA
  • Auto-Power Off:Yes
  • Jaw Size (Inch):1.4
  • Jaw Size (cm):3.6
  • Drop Protection:6.6′ (2 m)
  • Display:Transflective Reverse-Contrast with 6000 Count LCD
  • Display Size:1.51” x 1.02” (3.8 x 2.6 cm)
  • Functions:AC/DC/ Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability
  • Auto Ranging:Yes
  • TRMS:Yes
  • Voltage:1000V AC; 1000V DC
  • Frequency:1Hz – 500 KHz
  • Current: 600A
  • Capacitance:6000F
  • Ohms (Resistance):60M
  • AC Voltage:1000V
  • DC Voltage:1000V
  • DC Polarity Indicator:Yes
  • DC Micro-Amp: No
  • Temperature Range:
  • Ingress Protection:IP40
  • Accuracy:See Instructions
  • Standard:CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
  • Included: Clamp Meter; Right-Angle Input Test Leads; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
  • Overall Length (Inch):9.06
  • Overall Length (cm):23
  • Overall Height (Inch):1.65
  • Overall Height (cm):4.2
  • Overall Width (Inch):3.47
  • Overall Width (cm):8.8

Product Brochure
